    Lead Free SMT Assembly Line , Morel PCB Assembly Equipment Hot Air Reflow Oven

    Ask Lasest Price
    Brand Name : Morel
    Model Number : Morel - R8
    Certification : CE,ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 500/month
    Delivery Time : 2-3days
    • Product Details
    • Company Profile

    Lead Free SMT Assembly Line , Morel PCB Assembly Equipment Hot Air Reflow Oven

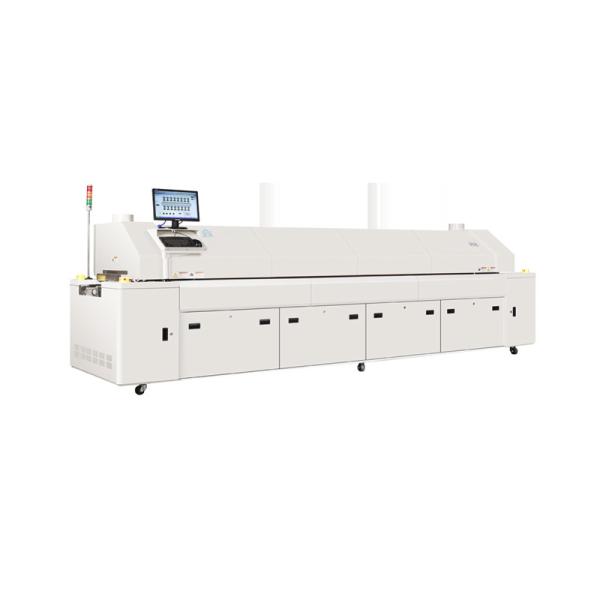

    Lead- free Hot Air Reflow Oven - Morel R8
    Warranty:6 months
    Usage:FUJI SMT machine
    Quality:100% Tested
    Brand Name:Morel
    Type:SMT machine parts
    Condition:Original new
    ModelMorel R8

    Heating System

    Number of heating zonesTop 8/Bottom 8
    Number of cooling zones2
    Heating passage3600mm
    Heating styleHot air
    Cooling styleAir Oven: Forced air; Nitrogen Oven: Water Chiller
    Exhaust Volume10m³/min * 2 vanes

    Conveyor System

    Max. Width of PCB450mm
    Mesh belt width500mm
    Conveyor DirectionL→R(or R→L)
    Process height900±20mm
    Conveyor typeMesh and chain
    Range of rail width0-450mm
    Conveyor speed0-2000mm/min
    Auto/manual Lubricationstandard
    Fixed trackFront rail fixed(option: rear rail fixed)
    Product clearanceTop and bottom 25mm

    Control system

    Power supply5 cables 3 phase 380V 50/60Hz
    Total consumption40kw
    Startup consumption38kw
    Steady consumption8KW
    Ramp up timeAbout 20 mins
    Temp. set-point rangeRoom temperature-300℃
    Temp. control methodPID close loop control & SSR driving
    Temp. control precision±1℃
    Temp. deviation on PCB±2℃
    Data storageProcess Data and status storage(80GB)
    Nozzle plateAluminum Alloy Plate
    Abnormal AlarmAbnormal temp. (over-temp/low temp.)
    Board dropped alarmLight Tower: Amber-warming, Green-normal, Red-abnormal

    General

    Dimension(L*W*H)5200×1400×1550mm
    Weight2200KG
    ColorComputer grey
