Long Lifespan SMT Pick And Place Machine I PULSE Chip Mounter M2- Plus CE Approval

Product Categories

Qinyi Electronics Co.,Ltd QYSMT

Contact Now

Name: Long Lifespan SMT Pick And Place Machine I PULSE Chip Mounter M2 Plus CE Approval
Brand: I-PULSE
Price: 1 USD

Ask Lasest Price
Brand Name :	I-PULSE
Model Number :	M2-Plus
Certification :	CE,ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union, MoneyGram,Paypal
Supply Ability :	500/month
Delivery Time :	2-3days

Add to Cart

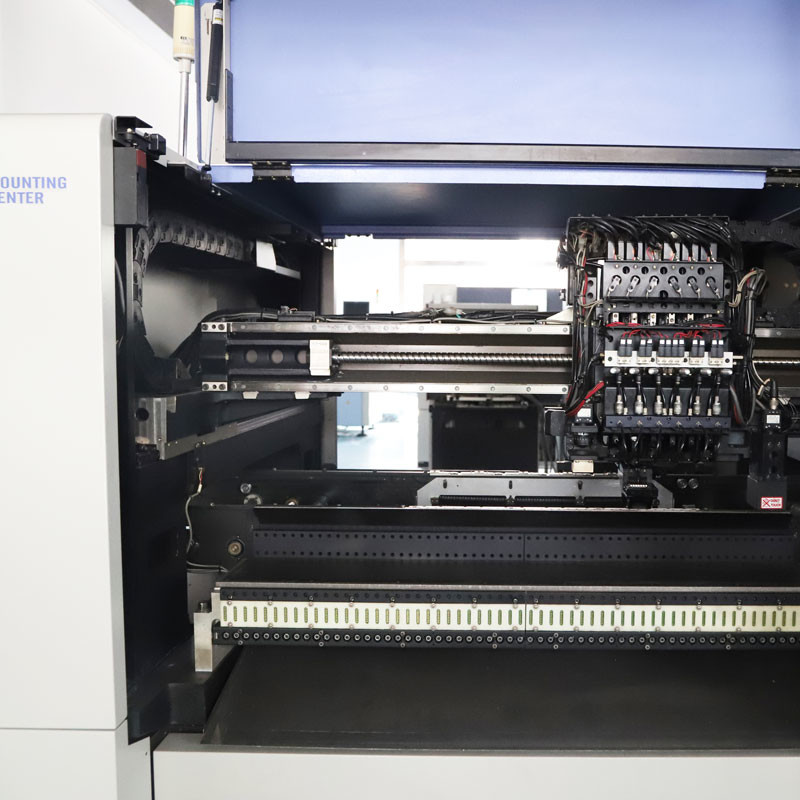

I-PULSE Chip Mounter -M2-Plus

Warranty:6 months

Usage:SMT machine

Quality:100% Tested

Brand Name:I-PULSE

Type:SMT machine parts

Condition:Original new

I-Pulse- M2 Plus Specification
Board size	L50xW50mm – L460 xW410mm
Board thickness	0.5mm-2.0mm
Flow direction	Left to right
Conveyor speed	Max. 420mm/sec, speed variable, soft stop fuction
Placement speed A (NB1)	0.13 sec/CHIP, 0.38 sec/TSOP32
Placement speed B (NB2)	0.54 sec/QFP100 (when using the optional fixed camera FCO5)
Placement accuracy A (u+3o)	CHIP +0.05mm
Placement accuracy B (u+30c)	QFP +0.03mm (when using the optional fixed camera FCO3)
Placement angle	+180’, resolution 0.015
Z-axis control	6-head independent servo motors, resolution 0.006mm
Component height	15mm (Preplaced components max. 10.5mm)
Components applicable	0603 (option) – SOP, PLCC, QFP, BGA, CSP, connector, and odd-form components
Component carriers	8-56mm tape, stick, tray
Drawback check	Vacuum check and vision check
Multi language display	Japanese, Chinese, Korean, and English
Board locating method	Board edge or tooling hole (option), front reference
Component types	120 types (8mm tape conversion)
Board transfer height	900+20mm
Dimensions, weight	L1,750XD1,530XH1, 510mm, approx. 1,950Kg
Power, consumption, capacity	3phase 200V (Option: 208, 220, 240, 380, 400, 415, 440V) +10% 50/60Hz, 4.0KVA, 6.0KVA
Air and consumption	0.5MPa, 692/min A.N.R.
