Home > SMT Line Machine >

Condition Original SMT Line Machine High Speed DEK Screen Printer - Horizon 02i

Product Categories

Qinyi Electronics Co.,Ltd QYSMT

Contact Now

Ask Lasest Price
Brand Name :	DEK
Model Number :	Horizon 02i
Certification :	CE,ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union, MoneyGram,Paypal
Supply Ability :	500/month
Delivery Time :	2-3days

Add to Cart

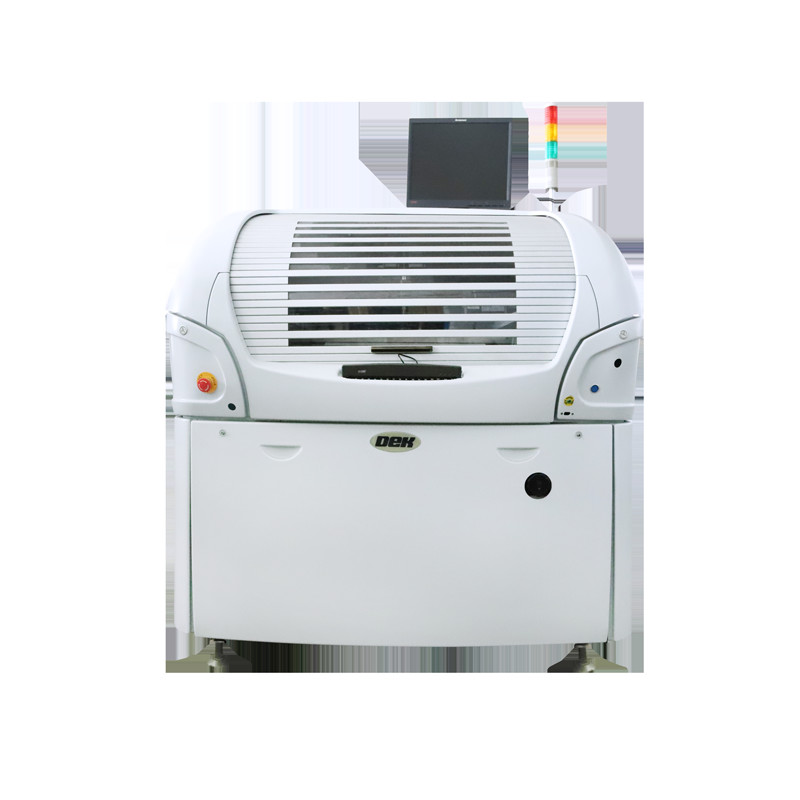

DEK Screen Printer – Horizon 02i

Warranty:6 months

Usage:DEK SMT machine

Quality:100% Tested

Brand Name:DEK

Type:SMT machine parts

Condition:Original used

Transport System	Specification
Type	Single piece with 3mm round transport belts
Rail Justification	Front fixed rail
Width Adjustment	Programmable motorised rear rail
Min. Board Size (Handling)	50mm (X) x 40mm (Y)
Max. Board Size (Handling)	508mm (X) x 508mm (Y)
Transport Direction	Left to right Right to left Left to left Right to right
Substrate Location	Patented over the top clamps
Underside Component Clearance Substrate Thickness	3mm to 42mm 0.2mm to 6mm
Substrate Max. Weight	1kg
Substrate Warpage	Up to 8mm including substrate thickness

Vision	Specification
Vision System	Cognex
Camera Lighting	Software controlled programmable LED lighting
Fiducials	2
Fiducial Types	Synthetic fiducial library or unique pattern recognition
Fiducial Size	0.5mm to 3mm
Fiducial Locations	Anywhere on substrate
Fiducial Error Recovery	Auto lighting adjustment Auto fiducial search

Operating Environment	Specification
Temperature	o o o o 10 to 35 C (50 to 95 F)
Humidity	30% to 70% Relative Humidity (non condensing)

Process Parameters	Specification
Print Pressure	0kg to 20kg
Print Gap	0mm to 6mm
Screen Separation	Speed: 0.1mm to 20mm/sec
	Distance: 0mm to 3mm
Print Modes	ProFlowTM
	Print/Print
	Print/Flood
	Flood/Print
	Adhesive
Paste Knead	Programmable: number, period, on demand

Condition Original SMT Line Machine High Speed DEK Screen Printer - Horizon 02i
